TImage is a data type that holds an image.

This is used manipulate and process an image such as resizing, rotating, bluring and much more. Or simply get/set a pixel color at a given (x,y) coord.


TImage.Create

function TImage.Create: TImage; static;

TImage.Create

function TImage.Create(Width, Height: Integer): TImage; static;

TImage.Create

function TImage.Create(FileName: String): TImage; static;

TImage.CreateFromString

function TImage.CreateFromString(Str: String): TImage; static;

TImage.CreateFromZip

function TImage.CreateFromZip(ZipFileName, ZipEntryName: String): TImage; static;

Load an image from a file inside a zip file.


TImage.CreateFromMatrix

function TImage.CreateFromMatrix(Mat: TIntegerMatrix): TImage; static;

TImage.CreateFromMatrix

function TImage.CreateFromMatrix(Mat: TSingleMatrix; ColorMapType: Integer = 0): TImage; static;

TImage.Free

procedure TImage.Free;

TImage.Data

function TImage.Data: PColorBGRA;

TImage.Width

function TImage.Width: Integer;

TImage.Height

function TImage.Height: Integer;

TImage.Center

function TImage.Center: TPoint;

TImage.GetDefaultPixel

function TImage.GetDefaultPixel: TColorBGRA;

TImage.SetDefaultPixel

procedure TImage.SetDefaultPixel(Value: TColorBGRA);

TImage.GetDrawColor

function TImage.GetDrawColor: TColor;

Returns the current drawing color.

Note

Red is the default value.


TImage.SetDrawColor

procedure TImage.SetDrawColor(Color: TColor);

Sets the current draw color.

Note

Red is the default value.


TImage.GetDrawAlpha

function TImage.GetDrawAlpha: Byte;

Returns the current draw alpha. 0 is completely transparent and 255 is completely opauge.

Note

255 is the default value.


TImage.SetDrawAlpha

procedure TImage.SetDrawAlpha(Value: Byte);

Sets the current draw color. This determines how transparent something is drawn.

Note

255 is the default value.


TImage.GetFontName

function TImage.GetFontName: String;

TImage.SetFontName

procedure TImage.SetFontName(Value: String);

TImage.GetFontSize

function TImage.GetFontSize: Single;

TImage.SetFontSize

procedure TImage.SetFontSize(Value: Single);

TImage.GetFontAntialiasing

function TImage.GetFontAntialiasing: Boolean;

TImage.SetFontAntialiasing

procedure TImage.SetFontAntialiasing(Value: Boolean);

TImage.GetFontBold

function TImage.GetFontBold: Boolean;

TImage.SetFontBold

procedure TImage.SetFontBold(Value: Boolean);

TImage.GetFontItalic

function TImage.GetFontItalic: Boolean;

TImage.SetFontItalic

procedure TImage.SetFontItalic(Value: Boolean);

TImage.GetAlpha

function TImage.GetAlpha(X, Y: Integer): Byte;

TImage.SetAlpha

procedure TImage.SetAlpha(X, Y: Integer; Alpha: Byte);

TImage.GetPixel

function TImage.GetPixel(X, Y: Integer): TColor;

TImage.SetPixel

procedure TImage.SetPixel(X, Y: Integer; Color: TColor);

TImage.GetPixels

function TImage.GetPixels(Points: TPointArray): TColorArray;

TImage.SetPixels

procedure TImage.SetPixels(Points: TPointArray; Color: TColor);

TImage.SetPixels

procedure TImage.SetPixels(Points: TPointArray; Colors: TColorArray);

TImage.InImage

function TImage.InImage(X, Y: Integer): Boolean;

TImage.SetSize

procedure TImage.SetSize(AWidth, AHeight: Integer);

TImage.SetExternalData

procedure TImage.SetExternalData(NewData: PColorBGRA; DataWidth, DataHeight: Integer);

Point the image data to external data (ie. not data allocated by the image itself).


TImage.ResetExternalData

procedure TImage.ResetExternalData;

Remove the effects of SetExternalData.


TImage.Fill

procedure TImage.Fill(Color: TColor);

Fill the entire image with a color.


TImage.FillWithAlpha

procedure TImage.FillWithAlpha(Value: Byte);

Set the entire images alpha value.


TImage.Clear

procedure TImage.Clear;

Fills the entire image with the default pixel.


TImage.Clear

procedure TImage.Clear(Area: TBox);

Fills the given area with the default pixel.


TImage.ClearInverted

procedure TImage.ClearInverted(Area: TBox);

Fills everything but given area with the default pixel.


TImage.Copy

function TImage.Copy(Box: TBox): TImage;

TImage.Copy

function TImage.Copy: TImage;

TImage.Crop

procedure TImage.Crop(Box: TBox);

TImage.Pad

procedure TImage.Pad(Amount: Integer);

Pad an Amount pixel border around the entire image.


TImage.Offset

procedure TImage.Offset(X,Y: Integer);

Offset the entire images content within itself.


TImage.SplitChannels

procedure TImage.SplitChannels(var B,G,R: TByteArray);

TImage.FromChannels

procedure TImage.FromChannels(const B,G,R: TByteArray; W, H: Integer);

TImage.GetColors

function TImage.GetColors: TColorArray;

TImage.GetColors

function TImage.GetColors(Box: TBox): TColorArray;

TImage.ReplaceColor

procedure TImage.ReplaceColor(OldColor, NewColor: TColor);

TImage.ReplaceColor

procedure TImage.ReplaceColor(OldColor, NewColor: TColor; Tolerance: Single);

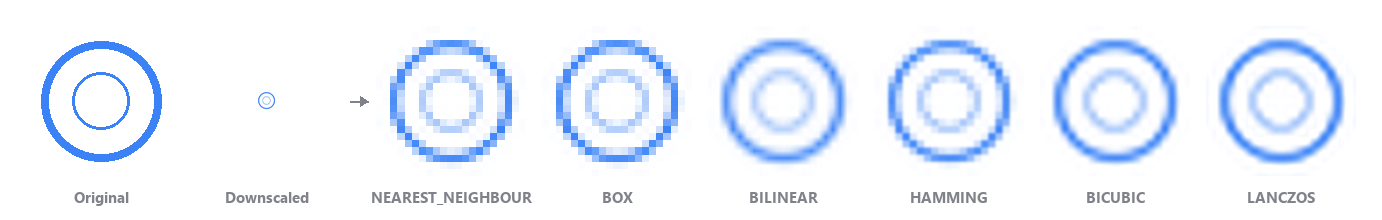

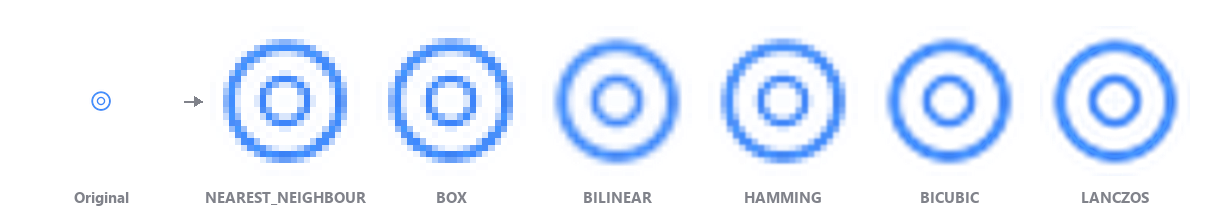

TImage.Resize

function TImage.Resize(Algo: EImageResizeAlgo; NewWidth, NewHeight: Integer): TSimbaImage;

TImage.Resize

function TImage.Resize(Algo: EImageResizeAlgo; Scale: Single): TSimbaImage;

TImage.Rotate

function TImage.Rotate(Algo: EImageRotateAlgo; Radians: Single; Expand: Boolean): TSimbaImage;

TImage.Downsample

function TImage.Downsample(Scale: Integer): TImage;

TImage.Downsample

function TImage.Downsample(Scale: Integer; IgnorePoints: TPointArray): TImage;

Downsample but points in IgnorePoints are not sampled from.


TImage.Mirror

function TImage.Mirror(Style: EImageMirrorStyle): TImage;

TImage.TextWidth

function TImage.TextWidth(Text: String): Integer;

TImage.TextHeight

function TImage.TextHeight(Text: String): Integer;

TImage.TextSize

function TImage.TextSize(Text: String): TPoint;

TImage.DrawText

procedure TImage.DrawText(Text: String; Position: TPoint; Color: TColor);

TImage.DrawText

procedure TImage.DrawText(Text: String; Box: TBox; Alignments: EImageTextAlign; Color: TColor);

TImage.DrawTextLines

procedure TImage.DrawTextLines(Text: TStringArray; Position: TPoint; Color: TColor);

TImage.DrawImage

procedure TImage.DrawImage(Image: TImage; Position: TPoint);

TImage.DrawATPA

procedure TImage.DrawATPA(ATPA: T2DPointArray);

Draws every TPA in the ATPA.


TImage.DrawTPA

procedure TImage.DrawTPA(Points: TPointArray);

Draws a TPointArray.


TImage.DrawLine

procedure TImage.DrawLine(Start, Stop: TPoint);

TImage.DrawLineGap

procedure TImage.DrawLineGap(Start, Stop: TPoint; GapSize: Integer);

TImage.DrawCrosshairs

procedure TImage.DrawCrosshairs(ACenter: TPoint; Size: Integer);

TImage.DrawCross

procedure TImage.DrawCross(ACenter: TPoint; Radius: Integer);

TImage.DrawBox

procedure TImage.DrawBox(B: TBox);

TImage.DrawBoxFilled

procedure TImage.DrawBoxFilled(B: TBox);

TImage.DrawBoxInverted

procedure TImage.DrawBoxInverted(B: TBox);

TImage.DrawPolygon

procedure TImage.DrawPolygon(Points: TPointArray);

TImage.DrawPolygonFilled

procedure TImage.DrawPolygonFilled(Points: TPointArray);

TImage.DrawPolygonInverted

procedure TImage.DrawPolygonInverted(Points: TPointArray);

TImage.DrawQuad

procedure TImage.DrawQuad(B: TBox);

TImage.DrawQuadFilled

procedure TImage.DrawQuadFilled(B: TBox);

TImage.DrawQuadInverted

procedure TImage.DrawQuadInverted(B: TBox);

TImage.DrawCircle

procedure TImage.DrawCircle(Center: TPoint; Radius: Integer);

TImage.DrawCircleFilled

procedure TImage.DrawCircleFilled(Center: TPoint; Radius: Integer);

TImage.DrawCircleInverted

procedure TImage.DrawCircleInverted(Center: TPoint; Radius: Integer);

TImage.DrawLineAA

procedure TImage.DrawLineAA(Start, Stop: TPoint; Color: TColor; Thickness: Single = 1.5);

TImage.DrawEllipseAA

procedure TImage.DrawEllipseAA(ACenter: TPoint; XRadius, YRadius: Integer; Color: TColor; Thickness: Single = 1.5);

TImage.DrawCircleAA

procedure TImage.DrawCircleAA(ACenter: TPoint; Radius: Integer; Color: TColor; Thickness: Single = 1.5);

TImage.DrawQuadArray

procedure TImage.DrawQuadArray(Quads: TQuadArray; Filled: Boolean);

TImage.DrawBoxArray

procedure TImage.DrawBoxArray(Boxes: TBoxArray; Filled: Boolean);

TImage.DrawPolygonArray

procedure TImage.DrawPolygonArray(Polygons: T2DPointArray; Filled: Boolean);

TImage.DrawCircleArray

procedure TImage.DrawCircleArray(Centers: TPointArray; Radius: Integer; Filled: Boolean);

TImage.DrawCrossArray

procedure TImage.DrawCrossArray(Points: TPointArray; Radius: Integer);

TImage.DrawHSLCircle

procedure TImage.DrawHSLCircle(ACenter: TPoint; Radius: Integer);

TImage.Sobel

function TImage.Sobel: TImage;

Applies a sobel overator on the image, and returns it.


TImage.Enhance

function TImage.Enhance(Enchantment: Byte; C: Single): TImage;

Enhances colors in the image by a given value.

  • Enhancement: How much to substraact or add to the color.

  • C: Based on the “mid”-value (127) if color is below then it gets weakened else enchanced.


TImage.GreyScale

function TImage.GreyScale: TImage;

TImage.Brightness

function TImage.Brightness(Value: Integer): TImage;

TImage.Invert

function TImage.Invert: TImage;

TImage.Posterize

function TImage.Posterize(Value: Integer): TImage;

TImage.Convolute

function TImage.Convolute(Matrix: TDoubleMatrix): TImage;

Returns a full convolution with the given mask (Srouce?mask).

Hint

Mask should not be very large, as that would be really slow to proccess.


TImage.Threshold

function TImage.Threshold(Invert: Boolean = False; C: Integer = 0): TImage;

Otsu threshold algorithm.

Invert = Invert output C = Constant value to add to computed threshold


TImage.ThresholdAdaptive ———-’————-

function TImage.ThresholdAdaptive(Invert: Boolean = False; Radius: Integer = 25; C: Integer = 0): TImage;

Adapative thresholding using local average.

Invert = Invert output Radius = Window size, must be odd (default = 25) C = Constant value to add to computed threshold


TImage.ThresholdAdaptiveSauvola

function TImage.ThresholdAdaptiveSauvola(Invert: Boolean = False; Radius: Integer = 25; C: Single = 0.2): TImage;

Sauvola binarization algorithm.

Invert = Invert output Radius = Window size, must be odd (default = 25) C = Constant value (default = 0.2). Typical values are between 0.2 and 0.5.


TImage.Blend

function TImage.Blend(Points: TPointArray; Size: Integer): TImage;

TImage.Blend

function TImage.Blend(Points: TPointArray; Size: Integer; IgnorePoints: TPointArray): TImage;

Blend but points in IgnorePoints are not sampled from.


TImage.Blur

function TImage.Blur(Algo: EImageBlurAlgo; Radius: Integer): TSimbaImage;

Algo can be either EImageBlurAlgo.BOX, EImageBlurAlgo.GAUSS.

Note

EImageBlurAlgo.GAUSS is not true gaussian blur it’s an approximation (in linear time).

https://blog.ivank.net/fastest-gaussian-blur.html


TImage.ToGreyMatrix

function TImage.ToGreyMatrix: TByteMatrix;

TImage.ToMatrix

function TImage.ToMatrix: TIntegerMatrix;

TImage.ToMatrix

function TImage.ToMatrix(Box: TBox): TIntegerMatrix;

TImage.FromMatrix

procedure TImage.FromMatrix(Matrix: TIntegerMatrix);

Resizes the image to the matrix dimensions and draws the matrix.


TImage.FromMatrix

procedure TImage.FromMatrix(Matrix: TSingleMatrix; ColorMapType: Integer = 0);

Resizes the image to the matrix dimensions and draws the matrix.

ColorMapType can be: 0: cold blue to red 1: black -> blue -> red 2: white -> blue -> red 3: light (to white) 4: light (to black)


TImage.FromString

procedure TImage.FromString(Str: String);

TImage.FromData

procedure TImage.FromData(AWidth, AHeight: Integer; Memory: PColorBGRA; DataWidth: Integer);

TImage.Load

procedure TImage.Load(FileName: String);

TImage.Load

procedure TImage.Load(FileName: String; Area: TBox);

TImage.Save

function TImage.Save(FileName: String; OverwriteIfExists: Boolean = False): Boolean;

TImage.SaveToString

function TImage.SaveToString: String;

TImage.Equals

function TImage.Equals(Other: TImage): Boolean;

Are the two images exactly equal?

Note

Alpha is not taken into account.


TImage.Compare

function TImage.Compare(Other: TImage): Single;

TImage.PixelDifference

function TImage.PixelDifference(Other: TImage): Integer;

TImage.PixelDifference

function TImage.PixelDifference(Other: TImage; Tolerance: Integer): Integer;

TImage.PixelDifferenceTPA

function TImage.PixelDifferenceTPA(Other: TImage): TPointArray;

TImage.PixelDifferenceTPA

function TImage.PixelDifferenceTPA(Other: TImage; Tolerance: Integer): TPointArray;

TImage.ToLazBitmap

function TImage.ToLazBitmap: TLazBitmap;

TImage.FromLazBitmap

procedure TImage.FromLazBitmap(LazBitmap: TLazBitmap);

TImage.SaveUnfreedImagesInDir

procedure TImage.SaveUnfreedImagesInDir(Directory: String); static;

On script terminate if any images have not been freed save them to Directory for debugging ease.

Example:

  TImage.SaveUnfreedImagesInDir('some/directory/');

TImage.LoadFontsInDir

function TImage.LoadFontsInDir(Dir: String): Boolean; static;

Loads all “.ttf” fonts in the given directory.


TImage.Fonts

function TImage.Fonts: TStringArray; static;

Returns all the loaded font names.


TImage.Target

function TImage.Target: TTarget;

Returns a target which is targetted to the image. Use this to find colors and such on a image.


TImage.CreateFromTarget

function TImage.CreateFromTarget(Target: TSimbaTarget; Bounds: TBox = [-1,-1,-1,-1]): TImage; static;

Creates an image from the given target and bounds.

  • The Bounds parameter defaults to the entire target.


TImage.CreateFromTarget

function TImage.CreateFromTarget(Bounds: TBox = [-1,-1,-1,-1]): TImage; static;

Creates an image from the bounds of the current target.

  • Current target is the global Target variable

  • The Bounds parameter defaults to the entire target.


TImage.DrawTarget

procedure TImage.DrawTarget(Target: TSimbaTarget; P: TPoint; Bounds: TBox = [-1,-1,-1,-1]);

TImage.DrawTarget

procedure TImage.DrawTarget(P: TPoint; Bounds: TBox = [-1,-1,-1,-1]); overload;

TImage.Show

procedure TImage.Show(EnsureVisible: Boolean = True);

Show a image on the debug image.
